A Rare Case of Distal Humerus Intraosseous Arteriovenous Malformation

Learning Point of the Article:

Intraosseous arteriovenous is a rare condition which can mimic osteomyelitis/tumor. This is a case report demonstrates that without hesitation it can be treated by extended curettage with good functional results.


Case Report | Volume 9 | Issue 5 | JOCR September – October 2019 | Page 43-46 | M Aravindasamy, J K Giriraj Harshavardhan. DOI: 10.13107/jocr.2019.v09i05.1526


AuthorsM Aravindasamy[1], J K Giriraj Harshavardhan[1]

[1]Department of Orthopaedic Surgery, Sri Ramachandra Medical College and Research Institute, Sri Ramachandra Institute of Higher Education and Research, Chennai, Tamil Nadu, India.

Address of Correspondence:
Dr. M Aravindasamy,
Department of Orthopaedic Surgery, Sri Ramachandra Medical College and Research Institute, Sri Ramachandra Institute of Higher Education and Research, Chennai – 600 116, Tamil Nadu, India.
E-mail: aravindshallz@gmail.com


Abstract

Introduction: Introduction: Primary intraosseous arteriovenous malformations (AVMs) are rare and have only been occasionally reported. We herein report a histologically proven case of primary intraosseous AVM in the distal humerus which mimicked an osteomyelitis on radiography.
Case Report: A 27-year-old male presented with complaints of the right elbow pain and stiffness for the past 3 years. He had initially taken treatment at an outside hospital where he was suspected to have right distal humerus osteomyelitis and underwent curettage and biopsy in June 2017. He presented to us in August 2018 with persistent pain even following the first surgery. Repeat radiographs and computed tomography of the right elbow showed features of osteolytic lesion involving the right lateral humeral condyle just adjacent to olecranon fossa (Fig. 1 and 2). Through posterior triceps, splitting approach para-olecranon lesion was resected by intralesional method (burring), and vancomycin-impregnated calcium sulfate (Stimulan) beads were packed in the defect as infection was suspected (Fig. 3). Clinical improvement and restoration of full range of elbow motion were observed on follow-up. Biopsy report surprisingly suggested arteriovenous malformation.
Conclusion: Osteolytic lesion was localized in the lateral margin of the olecranon fossa (Fig. 2a and b). To reach the lesion during surgery was a major challenge as localization of the lesion was missed out by the previous surgery. The occurrence of such a condition is rare and it may take even years to correctly diagnose the disease.
Keywords: Arteriovenous malformation, distal humerus, intralesional extended curettage.


Introduction
Primary intraosseous arteriovenous malformations (AVMs) are rare, accounting for <1% of all primary intraosseous lesions. They are quite variable in their gross and microscopic presentation, yet all can be traced to anomalous development of the primitive vascular system. They may be totally asymptomatic, cosmetically disfiguring, painful, or on rare occasions, cause high-output cardiac failure. Surgical treatment is often unrewarding with recurrence not uncommon. Intra-arterial embolization has shown promising results. Peripheral symptomatic AVMs are uncommon lesion. Arrest or misdirection of the normal developmental pattern occurring at any stage can give rise to anomalous circulatory structures which can be closely correlated clinically and pathologically to the time of the insult. More than one-half of the reported cases of congenital AVMs involve the extremities. Approximately one-third of these occur in the upper extremity versus two-thirds in the lower extremity. While both soft tissue and intraosseous AVMs have identical origins, their clinical presentation and radiographic findings are quite different [1]. The diagnosis and locating the responsible lesion can be challenging and the lesion is often missed or misdiagnosed. We present a rare case of distal humerus AVMs mimicking osteomyelitis/tumor.

Case Report
A 27-year-old male came with complaints of the right elbow pain and stiffness for 3 years. The patient was apparently normal 3 years back. He started developing pain over the left elbow following a trivial trauma which was gradually progressive. The pain was dull aching and aggravated on lifting heavy weights and relieved partially by medications. The patient initially took treatment at outside hospital where he was suspected to have right distal humerus osteomyelitis and underwent curettage and biopsy in June 2017. The curettage was attempted through a lateral approach. As the lesion was in the para-olecranon region, it was probably not reached during the attempted curettage (Fig. 2c), and hence, he had persistent pain even after the surgery.
He presented to us about 1 year later (August 2018) with persistent of symptoms. Examination of the right elbow showed – healed longitudinal surgical scar of length 6 cm present over the lateral aspect of the distal humerus and elbow suggestive of a previous lateral approach, Swelling was present. Tenderness was present over the right elbow and distal humerus. Range of movement of the right elbow was 10–90° (active and passive) further restricted due to pain. Forearm rotations were full. There was no distal neurovascular deficit.

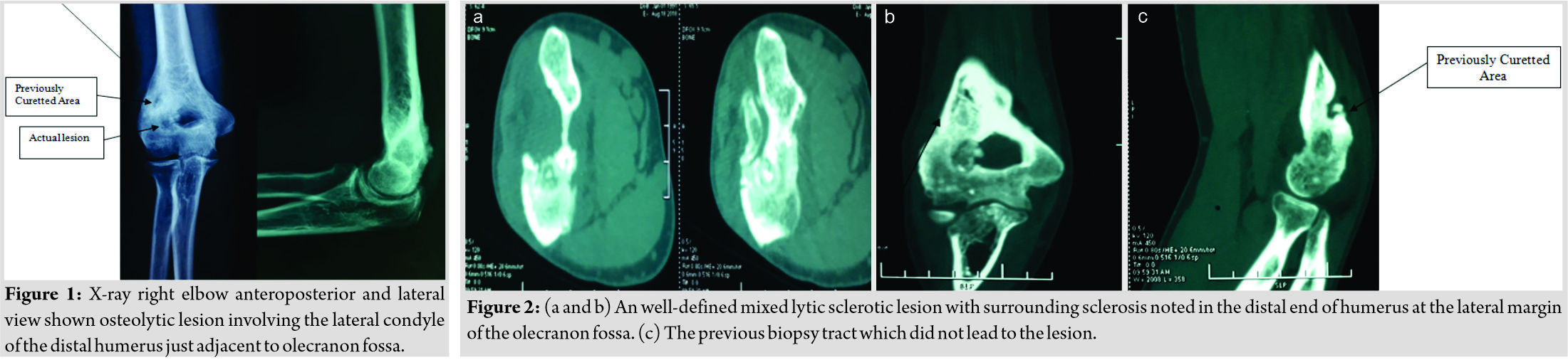

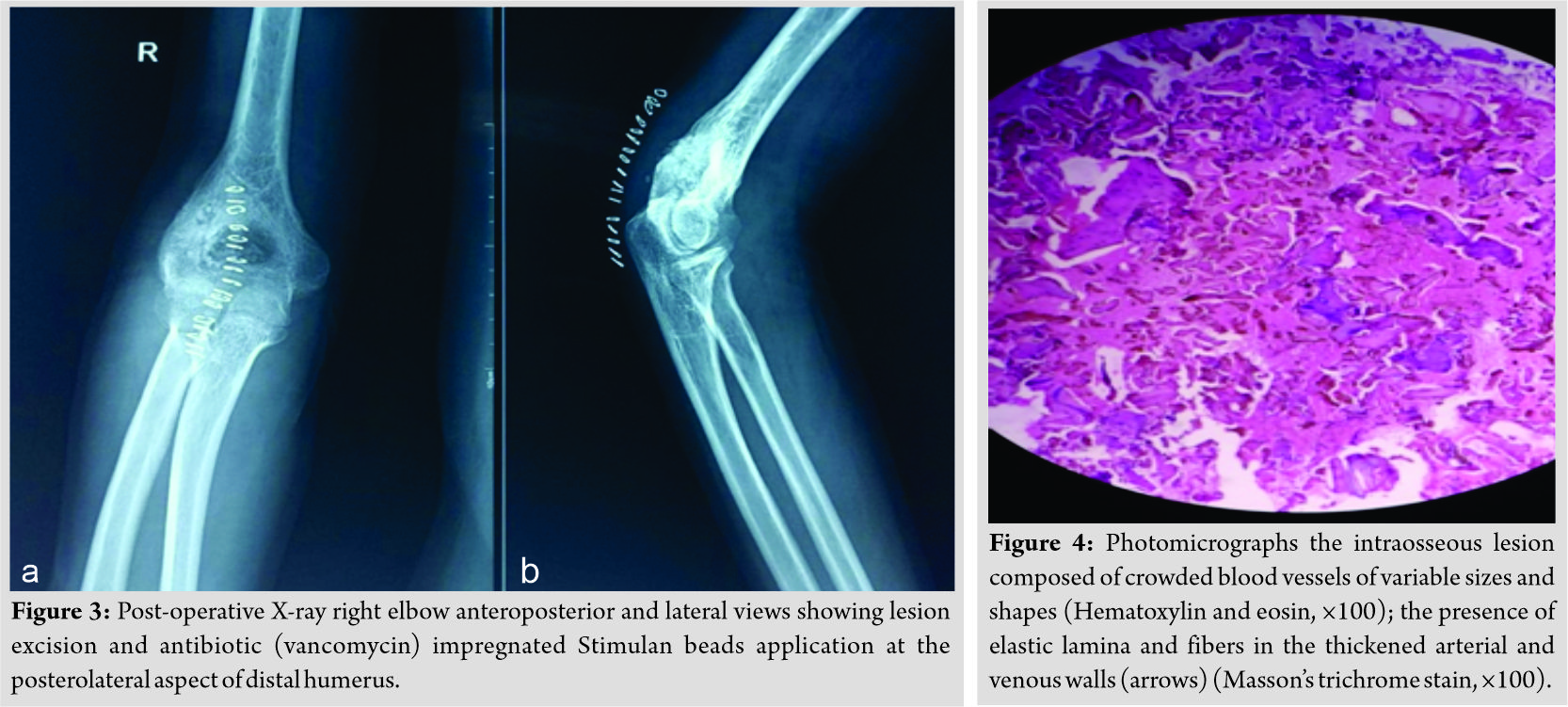

X-ray and computed tomography right elbow showed features of osteolytic lesion involving right lateral humeral condyle just adjacent to olecranon fossa (Fig. 2a and b). On September 05, 2018, through posterior triceps splitting approach lesion, we visualized the olecranon fossa. Preoperatively, olecranon fossa was not breached, and hence, at lateral margin of olecranon fossa was burred to reach the lesion. A bit of red tissue like granulation tissue was identified and curetted out. After extended curettage of lesion with burr, the defect was packed with bone substitute vancomycin-impregnated calcium sulfate (Stimulan) beads as we suspected infection (Fig. 3). Surprisingly, the biopsy was reported as an intraosseous arteriovenous malformation (Fig. 4). Culture of the tissue showed no growth, following surgery, the patient had excellent relief of pain. Postoperatively, the patient was followed up at 1 month, 3 months, 6 months, and 1 year and he gradually recovered full range of elbow motion with incorporation of bone graft substitutes (Fig. 5).

Discussion

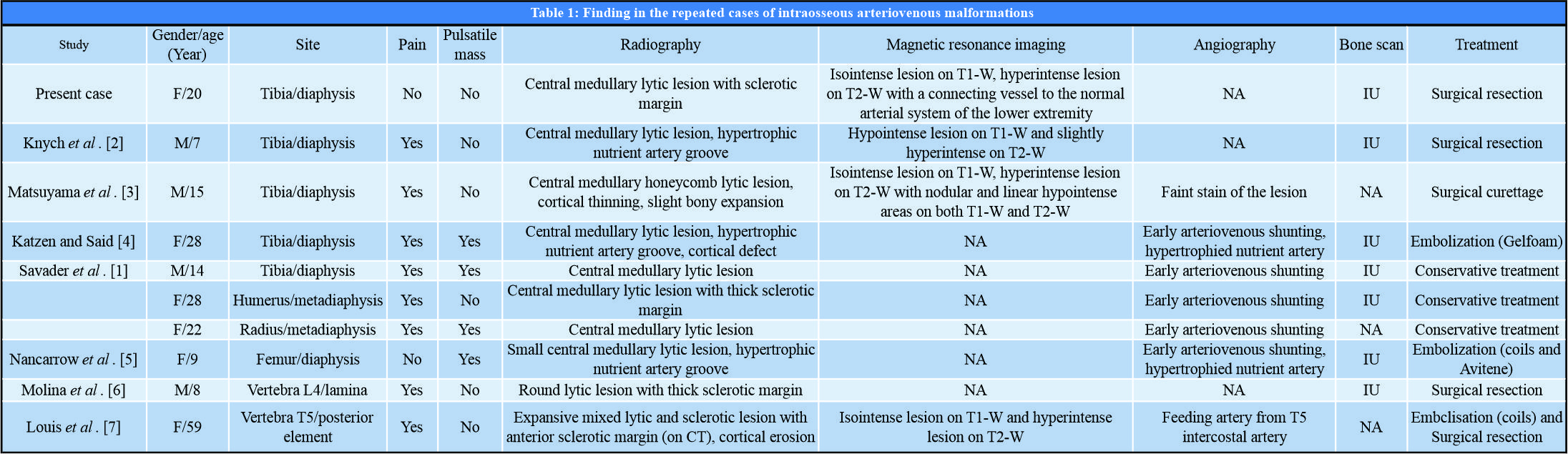

Vascular anomalies are classified as hemangiomas and vascular malformations. The most commonly used system for biological classifications of vascular anomalies is that by Mulliken and Glowacki. This system categorizes vascular anomalies into either tumors (principally hemangiomas) or malformations, based on clinical and histological findings. Vascular malformations may present at birth and enlarge proportionately with the growth of the child. They are the result of errors in morphogenesis and are divided into subtypes such as capillary, venous, lymphatic, arterial, and combined forms, based on the constituent vessels involved. Malformations may be further subcategorized based on flow characteristics. High-flow lesions consist of any malformation with an arterial component (e.g., AVMs and arteriovenous fistulas). Low-flow lesions refer to capillary, lymphatic, and venous malformations. AVMs contain well-formed arterial and venous elements that communicate directly, rather than through a normal capillary network. They are distinguished from other vascular lesions by the triad of dilated feeding arteries, enlarged draining veins, and early filling of these veins. Histologically, the presence of arteries, arterioles, or both as an integral part of the AVMs (demonstrated using Verhoeff’s elastic stain) is often used as a diagnostic criterion for differentiating AVMs from hemangiomas. While AVMs often involve the soft tissue and bone, primary intraosseous AVMs that first occur within the bone are extremely rare. Most cases of primary intraosseous AVMs occur in the mandible, maxilla, and zygoma. The occurrence of primary intraosseous AVMs in other skeletal sites, including the tibia, femur, humerus, radius, and spine, has been described in only nine cases to date (Table 1) [1, 2, 3, 4, 5, 6, 7]. Based on these reports, primary intraosseous AVMs occurred at all ages, at the mean age of 21 (range 7–59) years; however, all but one of the patients were younger than 30 years old [1, 2, 3, 4, 5, 6, 7]. Intraosseous hemangiomas are reported in older patients, with the peak diagnosis being made in patients in their fifties. The male-to-female ratio of primary intraosseous AVM incidence is 4:6, which is similar to that of interosseous hemangioma incidence. A total of eight cases (including the present case) reported the occurrence of primary intraosseous AVMs in the long tubular bones of the extremities, and another two cases reported AVM occurrence in the vertebra of the spine [1, 2, 3, 4, 5, 6, 7]. The clinical manifestations of primary intraosseous AVMs are protean. Based on the nine reported cases, painful sensation over the affected area is the most common presentation, occurring in nine of 10 patients, while four in 10 patients present with a pulsatile mass in the area of interest [1, 2, 3, 4, 5, 6, 7]. However, while primary intraosseous AVMs can be associated with skin discoloration, swelling, and bruising, or on rare occasions, cause high-output cardiac failure, it can also be completely asymptomatic. On radiography, most primary intraosseous AVMs of long tubular bones are described as a central, longitudinally oriented, medullary lytic geographic lesion, occasionally accompanied by sclerotic margins. A hypertrophic nutrient artery groove, appearing as longitudinal radiolucency in the bone cortex, was found in three cases [2, 4, 5]. The anatomic location of the lesions was exclusively at the diaphysis in cases where the tibia and femur were involved [1, 2, 3, 4, 5]. The other two cases of primary intraosseous AVMs involving the humerus and radius arose from the metadiaphysis. Total surgical resection is generally considered the optimal therapy for AVMs due to their tendency to expand and recur with time [8]. During the first surgery, probably, the lesion was not reached as it was done through lateral approach. Hence, the lesion was persistent and the patient was not relieved of his symptoms. We anticipated the difficulty of reaching the lesion through a lateral approach as the lesion was in the lateral margin of olecranon fossa. We initially suspected it to be a subacute osteomyelitis. We were able to reach the lesion and curette it as we had gone through a posterior triceps splitting and not through a lateral approach. Hence, we were able to localize the lesion and remove it intraoperatively. Surprisingly, it turned out to be an arteriovenous malformation.

Conclusion
The diagnosis of arteriovenous malformation is challenging and often misdiagnosed. Extended curettage of the lesion can be done without hesitation to ablate the lesion. Due to the non-specific nature of the presenting symptoms, the condition is often detected late sometimes after years. Proper pre-operative planning, approach, and histology led us to the diagnosis of arteriovenous malformation.

Clinical Message
Osteolytic lesion was localized in the lateral margin of the olecranon fossa. To reach the lesion during surgery was a major challenge as localization of the lesion was missed out by the previous surgery. The occurrence of such a condition is rare and it may take even years to correctly diagnose the disease.
